Trusted Surgical Blade Manufacturer: Accu-Blade® Cutting Edges for Optimal Surgical Precision
Precision. Performance. Partnership.

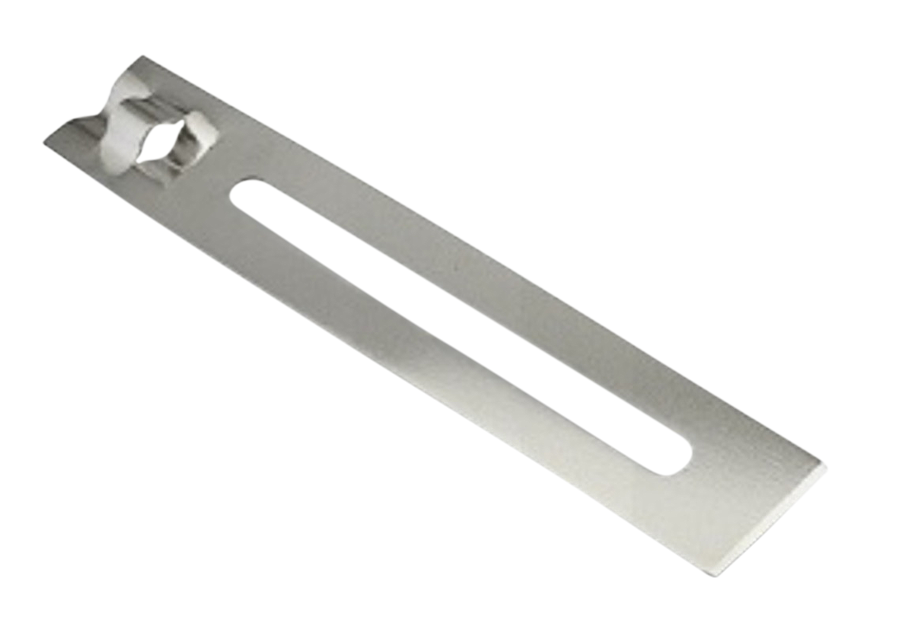

Driven by innovation, we are leaders in the production of precision surgical blades, delivering quality and expertise that set our products apart. Our Accu-Blade® surgical cutting edges are engineered for uncompromising sharpness and reliability, designed to meet the stringent demands of modern surgical instrument manufacturing.
Read More About Our Grinding Capabilities
Unmatched Sharpness and Consistency

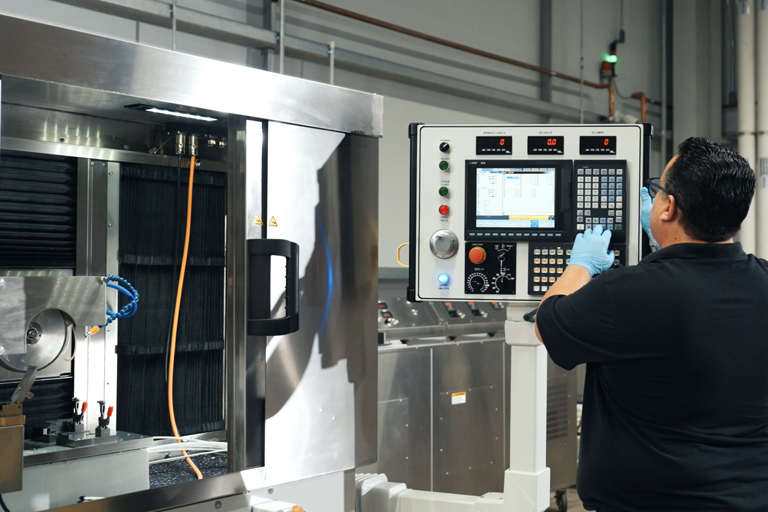

With our proprietary Accu-Blade® process, every blade is crafted to deliver exceptional cutting efficiency and reduced cut forces. Through refined grinding techniques and state-of-the-art, multi-axis CNC equipment, we achieve precision that surgeons and medical professionals can trust. Our blades are not only sharp but also compliant and durable, standing up to the most rigorous clinical applications with consistent results.
Cutting-Edge Technology for Superior Surgical Performance
Our engineering and design teams specialize in custom surgical instrument solutions, from initial concept through to automated production. Our advanced servo-driven systems grind, hone, and polish complex blade geometries with absolute precision. With fully integrated quality control systems, we ensure each blade meets exact specifications, resulting in instruments that surgeons depend on across various applications:
- Arthroscopic
- Endoscopic
- Laparoscopic
- Orthopedic
- Ophthalmic
- Custom surgical applications
Grinding Standard Capabilities
- Standard & Automated Solutions
- CNC Grinding
- Through-feed Grinding
- Profile Grinding
- Accu-Blade® – Proprietary Edge Grinding Technology Reduces Cut Force up to 10x
- ECG Grinding
- Application: Medical Wire & Cannula Point Grinding
- Point Geometries: Tri-Bevel, Menghini, Diamond, Trocar, Custom Styles
- Positioning Accuracy: ±.0001” per 4”
- Repeatability: ±.00004”
- Materials: 300 Series SS, 17-4 H900, UHB-716
Accelerating Innovation with NexTech Labs
We’re more than a surgical blade manufacturer; we’re a partner in medical innovation. AVNA’s NexTech Labs invites you to collaborate with our team, exploring new design possibilities and pushing the limits of surgical instrument performance. Our dedicated equipment and expert staff expedite time-to-market while maintaining rigorous quality and compliance standards.

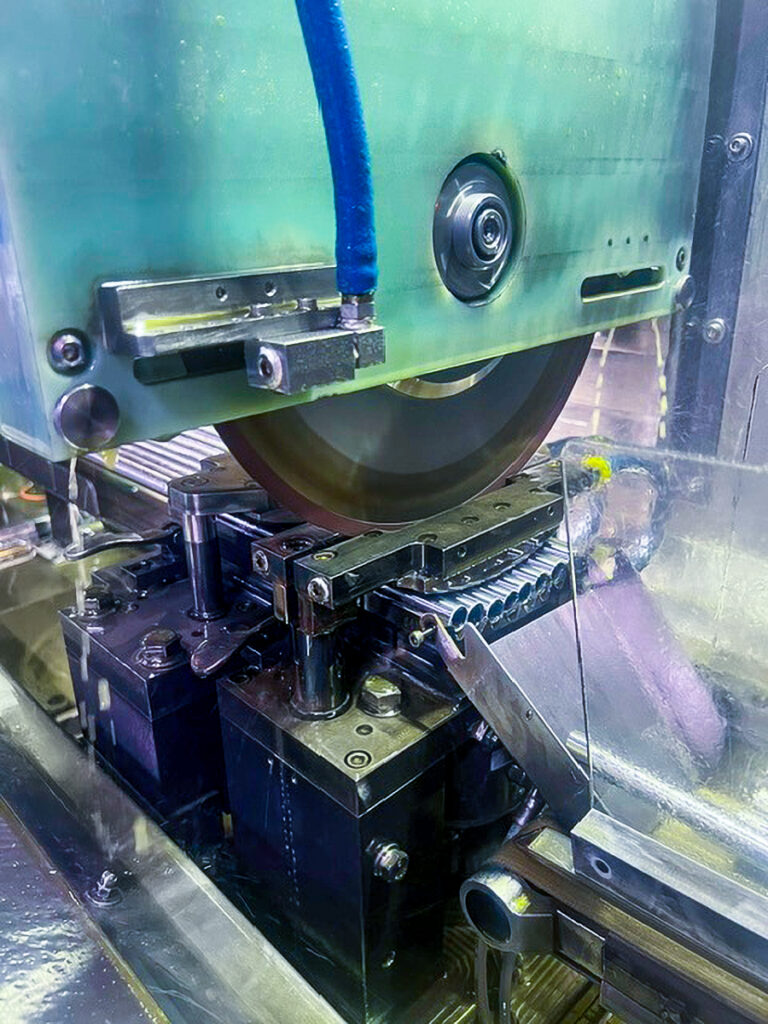

Electrochemical (ECG) Grinding for High-Precision Medical Point Production
AVNA’s Electrochemical Grinding (ECG) capability delivers precise, burr-free point grinding for medical wires and cannulas. This process enables consistent production of complex tip geometries—including Tri-Bevel, Menghini, Diamond, Trocar, and other custom styles—while maintaining excellent surface integrity.
By combining controlled mechanical grinding with electrochemical material removal, ECG minimizes heat and mechanical stress during processing. The result is exceptional positioning accuracy (±0.0001”/4”) and repeatability (±0.00004”), supporting tight tolerances in high-volume production. Compatible with materials such as 300 series stainless steel, 17-4 H900, and UHB-716, this capability is ideal for demanding medical device applications where precision and consistency are critical.
Contributing to Excellence in Surgical Manufacturing
AVNA’s commitment to excellence drives our Accu-Blade® process and proprietary production technologies, each crafted to serve the medical industry’s evolving needs. With custom-developed, multi-axis programs, in-house toolmaking, and automation, we consistently deliver blades that redefine surgical precision.
