Case Study:
SwissNano Success: Titanium Biopsy Markers
A leading medical device company required high-precision titanium markers for biopsy procedures. These markers are critical for accurately identifying biopsy sites, ensuring proper follow-up, and improving patient outcomes. The project demanded tight tolerances in small features, consistent quality, and biocompatibility compliance.
The Challenge
Manufacturing these titanium markers presented several challenges:
- Complex Geometries: The small and intricate design required advanced micromachining capabilities.
- Material Properties: Titanium is biocompatible but challenging to machine due to its toughness and tendency to generate heat.
- Precision Requirements: The markers needed to meet extremely tight tolerances to ensure reliability in clinical applications.
Solution

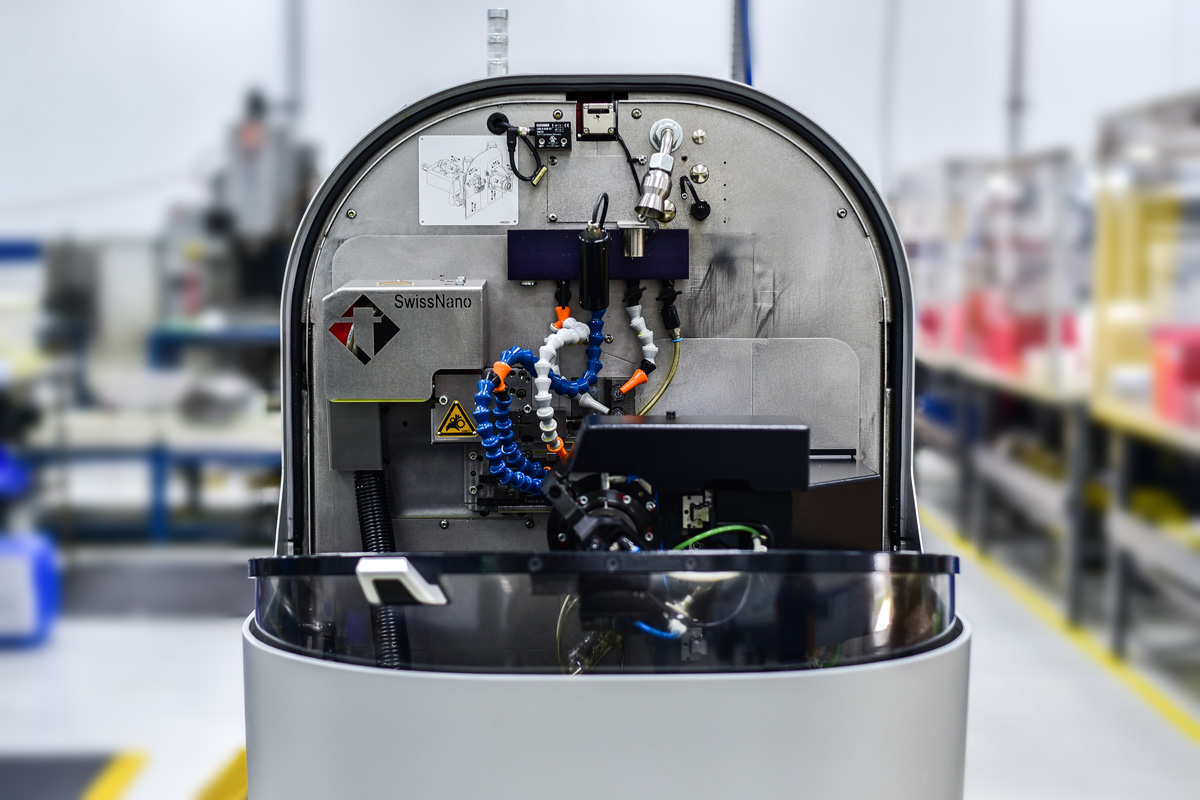

To meet these stringent demands, AVNA leveraged the advanced capabilities of the Tornos SwissNano. As part of our continuous investment in state-of-the-art technology, we developed a specialized manufacturing process tailored for precision titanium machining. This process included:
- Optimized Cutting Strategies: Fine-tuned tool paths and cutting parameters to maintain dimensional accuracy.
- Simultaneous Machining Operations: The SwissNano enabled turning, milling, and polygon operations in a single setup, reducing cycle times and enhancing consistency.
- Thermal Management & Stability: The machine’s smart thermal control and rigid cast iron base ensured repeatability across large production volumes.
- Surface Finish Optimization: Special tool coatings and optimized feed rates were implemented to achieve superior surface quality, crucial for medical applications.
Results
By integrating the SwissNano into AVNA’s precision manufacturing workflow, we successfully developed a robust and scalable process for producing titanium biopsy markers. The project resulted in:
- Consistent High-Precision Output: Achieved tolerances within ±0.001 mm.
- Improved Production Efficiency: Reduced machining time while maintaining quality.
- Enhanced Component Performance: Superior surface finish and material integrity for optimal biocompatibility.
Conclusion
AVNA’s expertise in advanced machining, combined with the capabilities of the SwissNano, allowed us to develop a highly efficient and precise manufacturing solution for titanium biopsy markers. This case exemplifies our commitment to leveraging cutting-edge technology to meet the evolving needs of the medical device industry.
Bring your most challenging medical device designs to life with SwissNano.
